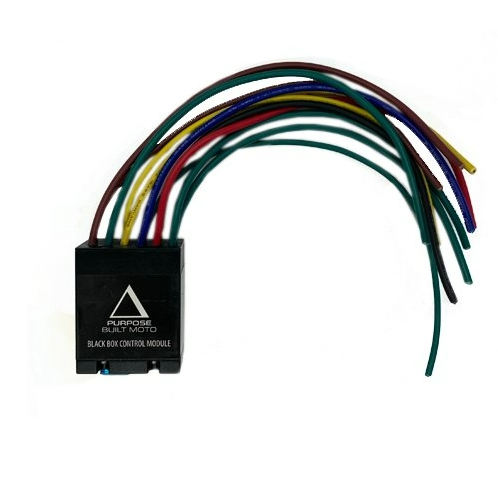

Purpose Built Moto Black Box V3

Description

Digital LED Flasher relay and Control Module

The Black Box Module allows you to control :

• Headlight Function- High and Low beam with a single momentary switch
• Turn Signals with Auto time out (5 Sec and 25 Sec)
• Integrated kill switch circuit
• Allowing the use of aftermarket momentary push buttons on your handlebars

Designed to be quickly installed and for maximum functionality only delivering the features you need. A stand alone unit easily added to your existing wiring or with a complete re-wire.

Specs:

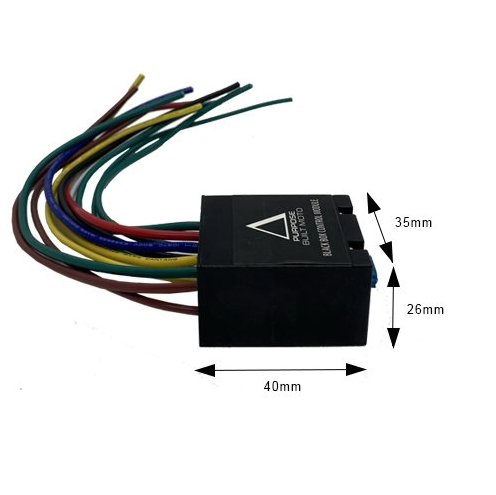

• Dimensions – L 40mm x W 35mm x H 26mm
• 6V and 12V operation
• Headlight – 55W/80W max output
• Turn signals – 40W max output
• Kill switch – 15A Unfused
• Integrated Blade fuse 15A

This module allows easy control of your turn signals and motorcycle lighting without the use of bulky resistors for LED lighting.

This flasher relay allows the use of a momentary push button for control of your Turn Signals and Headlight with an auto time out so you’re never left riding with your blinker on.
